Home > Carbon Steel > Carbon Steel ERW Pipe

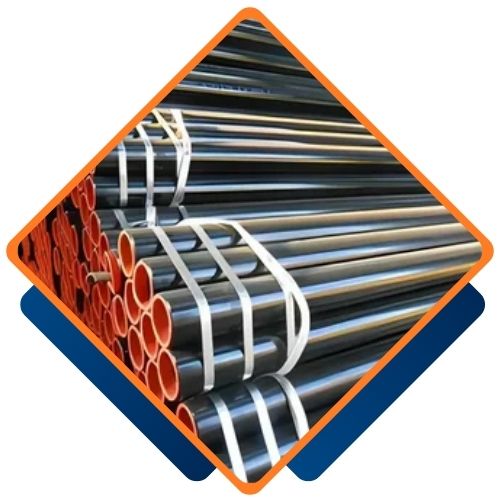

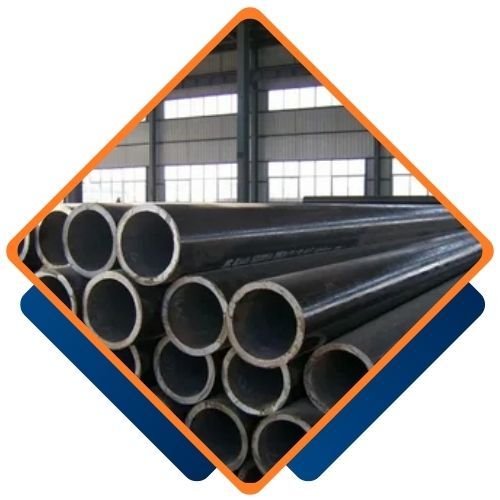

Mirza Pipe and Tubes supplies Carbon Steel ERW (Electric Resistance Welded) Pipes in Riyadh for high-performance use in water transmission, structural frames, oil and gas pipes, and industrial transportation. ERW pipes are produced through rolling metal and longitudinally welding it along its length with the absence of filler material. Renowned for their cost-effectiveness, precision, and strength, Mirza’s ERW pipes are globally accepted and available in different diameters, thicknesses, and grades. Our ERW pipes find extensive application in high mechanical strength and dimensional uniformity requiring industries.
Used in low to medium carbon steel, ERW pipes provide tensile strength of 350–600 MPa and yield strength of up to 355 MPa. High-frequency welding produces longitudinal seam, providing better joint strength and smooth interior surface. Benefits include consistent wall thickness, satisfactory corrosion resistance (galvanized or coated), and cost-effective production. They are simple to cut, thread, and fabricate. They are popularly used in structural as well as in pressure-carrying applications owing to their weld integrity, roundness, and ability to be supplied in continuous length.
Standard : ASTM A53, A106, API 5L, ASME B36
Size : 1/2” NB – 24” NB
Materials : Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65
Wall Thickness : SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160,XXS DIN, JIS standard thickness
Length : Fixed: 5.8, 6.0, 11.8, 12.0m Random length: 5-12m
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel ERW Pipe from Mirza Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Mirza Pipes and Tubes is one of the largest Carbon Steel ERW Pipe suppliers in Riyadh, Saudi Arabia, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
| Nominal | Pipe size | OD mm | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | 22.2 | 294 | 12.7 | 171 | ||
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
Yes, we offer custom sizes for Carbon Steel ERW Pipe to meet your specific requirements. Our team at Mirza Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mirzapipes.com.
ERW pipes are applied in water pipes, scaffolding, fencing, fire protection sprinkler systems, and oil transport pipelines. ERW pipes also apply to automotive body frames, boiler pipes, electrical conduits, and air conditioning ducts. Their smooth outer surface and weldability make them ideal for general engineering applications and mechanical constructions. ERW pipes are widely applied in medium-pressure handling, reliability, and economically viable installation in both ground and underground systems.
