Home > Stainless Steel > Stainless Steel Welded Pipes
Mirza Pipe and Tubes, located in Riyadh, Saudi Arabia, has built a solid reputation as a leading manufacturer and supplier of high-quality stainless steel piping products designed to meet the rigorous demands of various industries. One of their standout products is the Stainless Steel Welded Pipes, which are celebrated for their durability, resistance to corrosion, and cost-effectiveness. Crafted with advanced welding techniques and stringent quality control measures, these pipes find applications in diverse sectors such as construction, petrochemicals, water treatment, and food processing. Mirza Pipe and Tubes is dedicated to delivering top-notch, compliant products that ensure reliable performance and longevity in both structural and fluid transport scenarios.
The fabrication of Stainless Steel Welded Pipes involves welding stainless steel plates or strips, typically infused with chromium, nickel, and occasionally molybdenum to enhance corrosion resistance. These pipes boast impressive mechanical properties, including high tensile strength, excellent formability, and uniform wall thickness. Their key benefits include a smooth surface finish, affordability compared to seamless alternatives, ease of fabrication, and robust resistance to corrosion and oxidation. They are particularly well-suited for low to moderate pressure applications and come in a variety of sizes and finishes to cater to different industrial requirements.
| Dimensions | ASTM, ASME and API |
| Specifications | ASTM A312, ASTM A249, ASTM A213, ASTM A268, ASTM A269, ASTM A270, ASTM A778 |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | ERW / Welded / Fabricated / LSAW Pipes |
| Grades | 304, 304L, 304H, 321H, 321, 316, 316L, 316Ti, 310S, 347, 347H, UNS31803 Duplex |

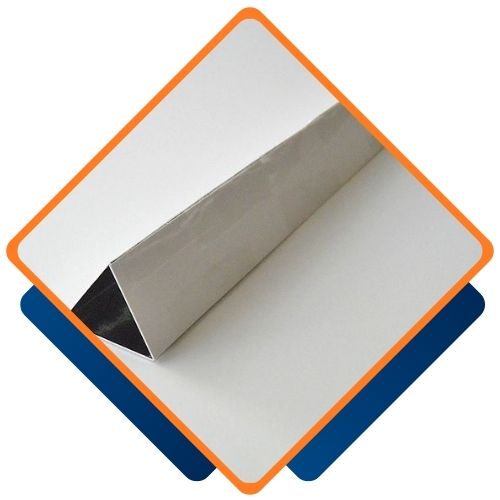

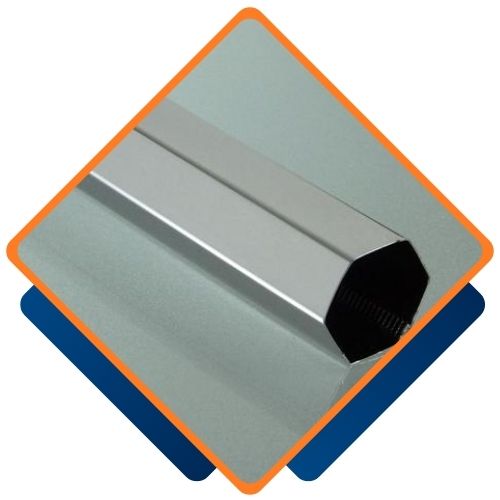

| Form | Round, Square, Rectangular, Hydraulic Etc |

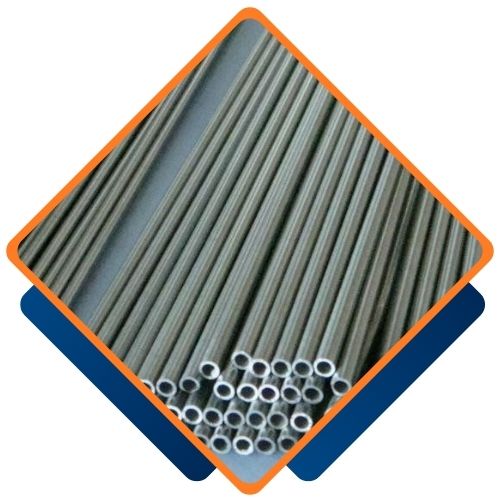

| Size | 1/8” NB to 36” NB, 1/4” OD to 36” OD sizes stainless steel welded tubes also available |
| Length | Single Random, Double Random & Cut Length. |
| Thickness | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| End | Plain End, Beveled End, Treaded |
| Finish | No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Welded Pipes |
| Delivery Condition | Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived, As Welded, Welded & Externally Polished, Welded Annealed & Pickled, Welded Cold Drawn Annealed & Pickled, Welded Cold Drawn Annealed Pickled & Externally Polished |
| Test Reports | PMI Test Reports, EN 10204 3.1 Certificate, NABL Approved Lab Report on Chemical and Mechanical Properties, NDT or Other Test Reports, 100% X-Ray Welding Reports |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Welded Pipes from Mirza Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Mirza Pipes and Tubes, one of the largest suppliers of Stainless Steel Welded Pipes in Riyadh, Saudi Arabia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel Welded Pipes to meet your specific requirements. Our team at Mirza Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mirzapipes.com.
Stainless Steel Welded Pipes are extensively utilized across various industries, including construction, chemical processing, oil and gas, food and beverage, and water treatment. In the construction sector, they are commonly used for handrails, support structures, and piping systems. In the chemical and petrochemical fields, they safely transport corrosive fluids. Their hygienic properties make them ideal for dairy and food production lines, while in water supply systems, they ensure durable and rust-resistant fluid transport. Their versatility, low maintenance needs, and resistance to corrosion make them a preferred choice for a wide array of industrial and commercial applications.
