Home > Copper Nickel > Copper Nickel Seamless Tubing
Headquartered in Riyadh, Saudi Arabia, Mirza Pipes and Tubes is a top-tier maker and vendor of superior stainless steel and nickel alloy tubes. Of our high-end products, Copper Nickel Seamless Tubes are notable for their exceptional corrosion resistance, heat transfer, and endurance. Designed to function in extreme marine, offshore, and industrial applications, these tubes ensure long-term reliability even in extreme stress and seawater exposure. With superior manufacturing techniques and a deep focus on global quality standards, Mirza Pipes & Tubes offers reliable and efficient tubing solutions customized to address the varied requirements of international industries.

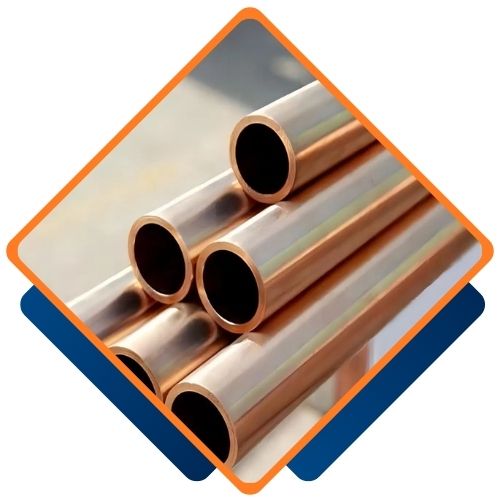

Copper Nickel Seamless Tubes are generally manufactured in a 90/10 form (90% copper and 10% nickel) with slight additions of iron and manganese to improve strength and corrosion resistance. The main features are a tensile strength of about 310 MPa, good elongation, satisfactory ductility, and good thermal conductivity for effective heat transfer. The tubes are resistant to seawater corrosion, stress, and biofouling, making them perfectly suited for long-term marine operation. Benefits are ruggedness, low maintenance cost, simplicity in fabrication, and consistent performance in offshore and land-based applications, guaranteeing operational effectiveness and cost savings.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Seamless

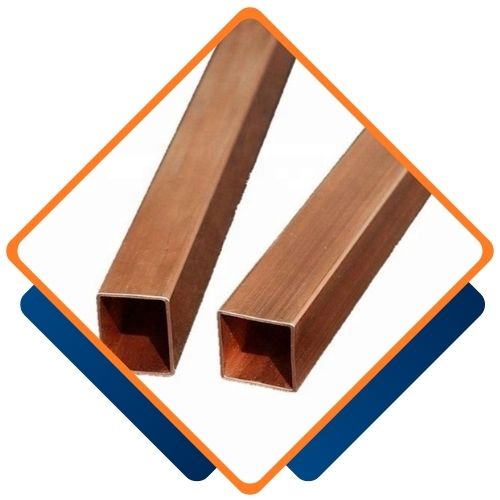

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Seamless Tubing from Mirza Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Seamless Tubing from Mirza Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Seamless Tubing to meet your specific requirements. Our team at Mirza Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mirzapipes.com.
Copper Nickel Seamless Tubes find extensive application in marine and industrial uses where corrosion resistance against seawater is of paramount importance. In the marine sector, they find widespread application in cooling systems, bilge and ballast piping, and seawater pipelines. The offshore industries use them in desalination plants, offshore platforms, and power plant condensers. Due to their biofouling resistance, they can be used for fishing and aquaculture systems. In addition, they are used in industrial heat exchangers, chemical processing, and pharmaceutical manufacturing, where long-lasting durability and consistent performance in corrosive conditions are required for long-term operational success.
