They are employed in seawater cooling lines, offshore platforms, naval ships, and high-performance heat exchangers. Copper nickel seamless pipes are required in saltwater fire protection, ballast systems, brine pipelines, and desalination units. They are suitable for aggressive environments because of their corrosion resistance and strength, which enables them to hold up even when welded pipes cannot. They’re also selected for marine HVAC systems and condenser tubes in power plants.
Incoloy tubing has nickel (30–46%), chromium (19–23%), and iron with trace amounts of molybdenum, copper, and titanium. It provides tensile strength of 500–700 MPa and high resistance to high-temperature oxidation and sulfur-bearing atmospheres. Incoloy does not pit, intergranular corrode, or crack due to chloride. Main benefits are high strength retention at high temperatures, weldability, and long life in chemically aggressive systems. It’s the best for hot acid, alkali, and brine exposure.
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
|---|---|
| Incoloy Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Specialize in | Incoloy Capillary Tube & Other Odd Size Incoloy Heat Exchanger & Condenser Tubes |
| Incoloy tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Incoloy Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Incoloy Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

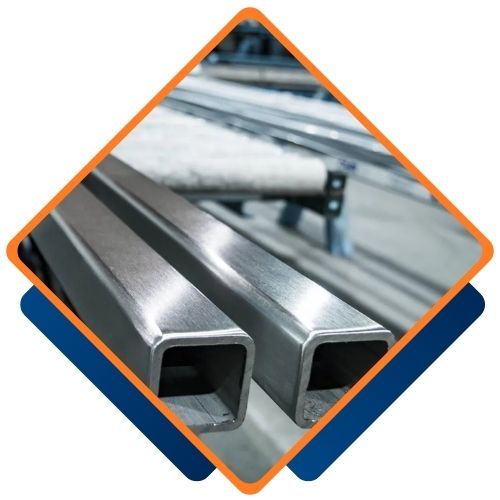

| Incoloy tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Incoloy Welded Tube Size | 6.35 mm OD To 152 mm OD |
| End | Plain End, Beveled End, Treaded |
| Incoloy Tube Standards | ASTM B163, B516 / ASME SB163, ASME SB516 |
| Marking | All Incoloy Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Incoloy Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
| Element | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy Tubes from Mirza Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Mirza Pipes and Tubes, one of the largest suppliers of Incoloy Tubing in the Riyadhs, Saudi Arabia. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Yes, we provide custom sizes for Incoloy Tubes to meet your specific requirements. At Mirza Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@mirzapipes.com.
Applying in chemical reactors, nuclear steam generators, heat exchangers, and superheaters, Incoloy tubing performs exceptionally well in hot acid environments and brine systems. It finds broad applications in flue gas scrubbers, sour gas processing, and marine exhausts. The tubing is best suited for heat-intensive use in refineries, thermal power plants, and high-temperature process piping where corrosion resistance and mechanical strength are the prime requirements.
