Home > Incoloy > Incoloy Seamless Tubing
Mirza Pipe and Tubes, located in Riyadh, Saudi Arabia, has earned a solid reputation as a reliable supplier of top-notch alloy tubing solutions, specifically designed for industries that demand exceptional corrosion and heat resistance. With a strong emphasis on performance and dependability, the company provides advanced materials tailored for even the most challenging applications. One of their standout products, Incoloy Seamless Tubing, is highly regarded for its remarkable strength, consistent structure, and ability to withstand harsh environments. Crafted without welds, this tubing guarantees leak-free operation under high pressure and temperature, making it perfect for use in chemical plants, refineries, power generation, and offshore operations.

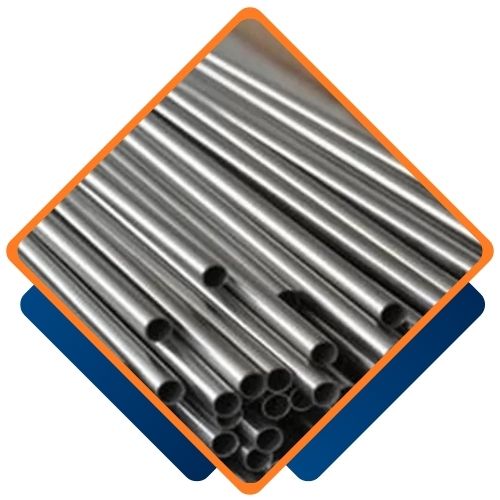

Incoloy Seamless Tubing is composed of nickel-iron-chromium alloys like Incoloy 800, 800H, or 825, which include nickel (30–46%), chromium (19–23%), iron, and trace elements such as molybdenum and titanium. It boasts a tensile strength ranging from 450 to 600 MPa and maintains impressive mechanical stability even at temperatures up to 1100°C. This tubing is resistant to oxidation, pitting, stress corrosion cracking, and acid attacks in both oxidizing and reducing environments. Its advantages include outstanding structural integrity, high-pressure tolerance, excellent corrosion resistance, and reliable performance in extreme thermal and chemical conditions, all while minimizing the risk of failure.
| Standards | ASTM / ASME B407, B514, B515 / SB407, SB514, SB515 |
| Pipes & Tubes Size | 1 / 8″ NB – 24″ NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Types | Seamless |
| NPS (DN) | WEIGHT LB/FT (KG/M) | SCH | Outside Diameter IN (Milimeter) | ID | WT IN (Milimeter) |
| 32 (800) | 84.085 (126.032) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.025 (6.035) |
| 32 (800) | 95.028 (141.09) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0281 (7.014) |
| 32 (800) | 105.069 (157.025) | 10 | 32.00 (813) | .0.0.0 | 0.0312 (7.092) |
| 32 (800) | 116.041 (173.035) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0344 (8.074) |
| 32 (800) | 126.078 (188.083) | .0.0.0 | 32.00 (813) | STD | 0.0375 (9.053) |
| 32 (800) | 137.012 (204.009) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0406 (10.031) |
| 32 (800) | 147.078 (220.01) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0438 (11.013) |
| 32 (800) | 158.008 (235.029) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0469 (11.091) |
| 32 (800) | 168.037 (250.065) | 20 | 32.00 (813) | XS | 0.05 (12.07) |
| 32 (800) | 188.087 (281.009) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0562 (14.027) |
| 32 (800) | 209.062 (312.017) | 30 | 32.00 (813) | .0.0.0 | 0.0625 (15.088) |
| 32 (800) | 230.029 (342.094) | 40 | 32.00 (813) | .0.0.0 | 0.0688 (17.048) |
| 32 (800) | 250.055 (373.00) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.075 (19.005) |
| 32 (800) | 270.072 (402.094) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0812 (20.062) |
| 32 (800) | 291.014 (433.052) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0875 (22.023) |
| 32 (800) | 311.047 (463.078) | .0.0.0 | 32.00 (813) | .0.0.0 | 0.0938 (23.083) |
| 32 (800) | 331.039 (493.035) | .0.0.0 | 32.00 (813) | .0.0.0 | 1.00 (25.04) |
| 32 (800) | 351.023 (522.08) | .0.0.0 | 32.00 (813) | .0.0.0 | 1.0062 (26.097) |
| 32 (800) | 371.031 (552.088) | .0.0.0 | 32.00 (813) | .0.0.0 | 1.0125 (28.058) |
| 32 (800) | 391.03 (582.064) | .0.0.0 | 32.00 (813) | .0.0.0 | 1.0188 (30.018) |
| 32 (800) | 410.09 (611.072) | .0.0.0 | 32.00 (813) | .0.0.0 | 1.025 (31.075) |
| 34 (850) | 90.02 (134.031) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.025 (6.035) |
| 34 (850) | 101.029 (150.088) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0281 (7.014) |
| 34 (850) | 112.036 (167.021) | 10 | 34.00 (864) | .0.0.0 | 0.0312 (7.092) |
| 34 (850) | 123.077 (184.034) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0344 (8.074) |
| 34 (850) | 134.079 (200.082) | .0.0.0 | 34.00 (864) | STD | 0.0375 (9.053) |
| 34 (850) | 145.08 (217.006) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0406 (10.031) |
| 34 (850) | 157.014 (234.01) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0438 (11.013) |
| 34 (850) | 168.011 (250.027) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0469 (11.091) |
| 34 (850) | 179.006 (266.063) | 20 | 34.00 (864) | XS | 0.05 (12.07) |
| 34 (850) | 200.089 (299.004) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0562 (14.027) |
| 34 (850) | 222.099 (332.014) | 30 | 34.00 (864) | .0.0.0 | 0.0625 (15.088) |
| 34 (850) | 245.00 (364.092) | 40 | 34.00 (864) | .0.0.0 | 0.0688 (17.048) |
| 34 (850) | 266.058 (396.096) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.075 (19.005) |
| 34 (850) | 288.008 (428.088) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0812 (20.062) |
| 34 (850) | 309.084 (461.048) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0875 (22.023) |
| 34 (850) | 331.052 (493.075) | .0.0.0 | 34.00 (864) | .0.0.0 | 0.0938 (23.083) |
| 34 (850) | 352.077 (525.03) | .0.0.0 | 34.00 (864) | .0.0.0 | 1.00 (25.04) |
| 34 (850) | 373.094 (556.073) | .0.0.0 | 34.00 (864) | .0.0.0 | 1.0062 (26.097) |
| 34 (850) | 395.036 (588.083) | .0.0.0 | 34.00 (864) | .0.0.0 | 1.0125 (28.058) |
| 34 (850) | 416.07 (620.06) | .0.0.0 | 34.00 (864) | .0.0.0 | 1.0188 (30.018) |
| 34 (850) | 437.062 (651.065) | .0.0.0 | 34.00 (864) | .0.0.0 | 1.025 (31.075) |
| 36 (900) | 95.054 (142.014) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.025 (6.035) |
| 36 (900) | 107.03 (159.068) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0281 (7.014) |
| 36 (900) | 119.003 (176.097) | 10 | 36.00 (914) | .0.0.0 | 0.0312 (7.092) |
| 36 (900) | 131.012 (195.012) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0344 (8.074) |
| 36 (900) | 142.081 (212.057) | .0.0.0 | 36.00 (914) | STD | 0.0375 (9.053) |
| 36 (900) | 154.048 (229.077) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0406 (10.031) |
| 36 (900) | 166.051 (247.082) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0438 (11.013) |
| 36 (900) | 178.014 (264.096) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0469 (11.091) |
| 36 (900) | 189.075 (282.029) | 20 | 36.00 (914) | XS | 0.05 (12.07) |
| 36 (900) | 212.09 (316.063) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0562 (14.027) |
| 36 (900) | 236.035 (351.073) | 30 | 36.00 (914) | .0.0.0 | 0.0625 (15.088) |
| 36 (900) | 259.071 (386.047) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0688 (17.048) |
| 36 (900) | 282.062 (420.045) | 40 | 36.00 (914) | .0.0.0 | 0.075 (19.005) |
| 36 (900) | 305.044 (454.03) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0812 (20.062) |
| 36 (900) | 328.055 (488.089) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0875 (22.023) |
| 36 (900) | 351.057 (523.014) | .0.0.0 | 36.00 (914) | .0.0.0 | 0.0938 (23.083) |
| 36 (900) | 374.015 (556.062) | .0.0.0 | 36.00 (914) | .0.0.0 | 1.00 (25.04) |
| 36 (900) | 396.064 (589.098) | .0.0.0 | 36.00 (914) | .0.0.0 | 1.0062 (26.097) |
| 36 (900) | 419.042 (624.007) | .0.0.0 | 36.00 (914) | .0.0.0 | 1.0125 (28.058) |
| 36 (900) | 442.01 (657.081) | .0.0.0 | 36.00 (914) | .0.0.0 | 1.0188 (30.018) |
| 36 (900) | 464.035 (690.08) | .0.0.0 | 36.00 (914) | .0.0.0 | 1.025 (31.075) |
| 38 (950) | 125.07 (186.094) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0312 (7.092) |
| 38 (950) | 138.047 (206.011) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0344 (8.074) |
| 38 (950) | 150.083 (224.056) | .0.0.0 | 38.00 (965) | STD | 0.0375 (9.053) |
| 38 (950) | 163.016 (242.074) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0406 (10.031) |
| 38 (950) | 175.087 (261.082) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0438 (11.013) |
| 38 (950) | 188.017 (279.094) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0469 (11.091) |
| 38 (950) | 200.044 (298.026) | .0.0.0 | 38.00 (965) | XS | 0.05 (12.07) |
| 38 (950) | 224.092 (334.058) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0562 (14.027) |
| 38 (950) | 249.071 (371.07) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0625 (15.088) |
| 38 (950) | 274.042 (408.046) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0688 (17.048) |
| 38 (950) | 298.065 (444.041) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.075 (19.005) |
| 38 (950) | 322.08 (480.024) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0812 (20.062) |
| 38 (950) | 347.026 (516.085) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0875 (22.023) |
| 38 (950) | 371.063 (553.011) | .0.0.0 | 38.00 (965) | .0.0.0 | 0.0938 (23.083) |
| 38 (950) | 395.053 (588.057) | .0.0.0 | 38.00 (965) | .0.0.0 | 1.00 (25.04) |
| 38 (950) | 419.035 (623.09) | .0.0.0 | 38.00 (965) | .0.0.0 | 1.0062 (26.097) |
| 38 (950) | 443.047 (660.001) | .0.0.0 | 38.00 (965) | .0.0.0 | 1.0125 (28.058) |
| 38 (950) | 467.05 (695.077) | .0.0.0 | 38.00 (965) | .0.0.0 | 1.0188 (30.018) |
| 38 (950) | 491.007 (730.074) | .0.0.0 | 38.00 (965) | .0.0.0 | 1.025 (31.075) |
| Element | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy Seamless Tubes from Mirza Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Mirza Pipes and Tubes, one of the largest suppliers of Incoloy Seamless Tubing in the Riyadhs, Saudi Arabia. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Yes, we provide custom sizes for Incoloy Seamless Tubes to meet your specific requirements. At Mirza Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@mirzapipes.com.

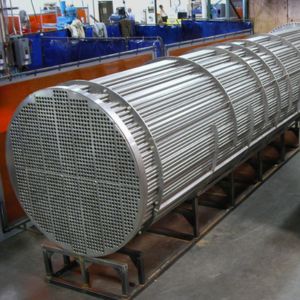

Incoloy Seamless Tubing finds extensive application in heat exchangers, high-temperature process lines, steam generators, and pressure vessels. It’s particularly well-suited for transporting corrosive fluids and gases in the chemical processing, nuclear, and petrochemical sectors. In marine and offshore settings, it stands up to saltwater and brine corrosion, while in power plants, it’s utilized in superheaters and reheat lines. Its seamless design ensures durability and safety in critical systems where strength, corrosion resistance, and long-term reliability are vital for uninterrupted operation.
