Home > Carbon Steel > Carbon Steel LSAW Pipe

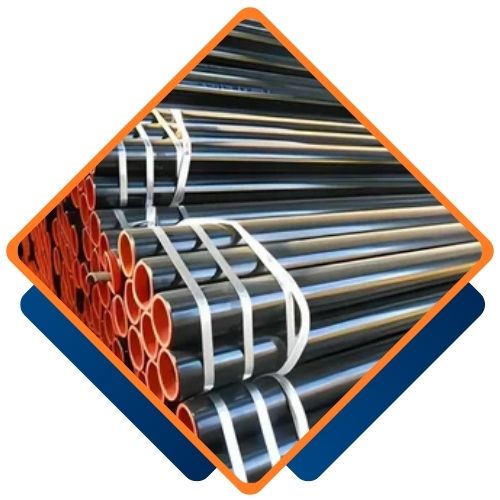

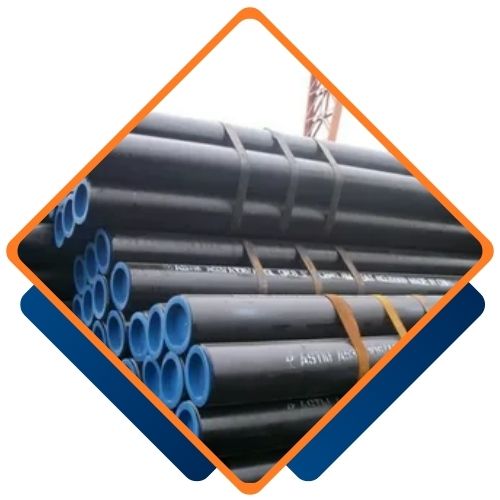

Mirza Pipe and Tubes provides Carbon Steel LSAW (Longitudinal Submerged Arc Welded) Pipes in Riyadh for application in high-pressure oil and gas pipelines, water supply pipes, and structural uses. LSAW pipes are made by bending and welding steel plates along the length to provide better strength and fewer weld defects. With accurate dimensional control and consistent quality, these pipes are ideal for large diameter, high-stress purposes. Mirza supplies LSAW pipes in multiple grades and wall thicknesses that deliver dependable solutions for tough infrastructure and energy projects in Saudi Arabia and the GCC.
LSAW pipes are manufactured from carbon steel plates with carbon, manganese, and silicon composition, having up to 600 MPa tensile strength and yield strength of about 355 MPa. The longitudinal weld produced under submerged arc process provides a clean, strong joint. The salient benefits are high weld strength, even wall thickness, precise dimensions, and superior performance under high pressure. LSAW pipes can be used both in coated and uncoated applications and accommodate non-destructive testing in critical service environments.
| Standard | : | API 5L, ASME B36.10M-1996, DIN1626, DIN1629, DIN17175, DIN 2448, JIS G3452, JIS G3454, JIS G3455, JIS G3456, JIS G3457, JIS G3461 |
|---|---|---|
| Sizes (Seamless) | : | 1/2” NB – 60” NB |
| Sizes (ERW) | : | 1/2” NB – 24” NB |
| Sizes (SAW) | : | 16” NB – 100” NB |
| Outer Diameter | : | 219mm – 1820mm |
| Wall Thickness | : | 5.0mm – 50mm |
| Length | : | 6mtr – 18mtr |
| Schedules | : | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160,XXS DIN, JIS standard thickness |
| Material | : | Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65, ST37.0, ST35.8, St37.2, St35.4/8, St42, St45, St52, St52.4, STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel LSAW Pipe from Mirza Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Mirza Pipes and Tubes is one of the largest Carbon Steel LSAW Pipe suppliers in Riyadh, Saudi Arabia, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
| Nominal | Pipe size | OD mm | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | 22.2 | 294 | 12.7 | 171 | ||
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
Yes, we offer custom sizes for Carbon Steel LSAW Pipe to meet your specific requirements. Our team at Mirza Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@mirzapipes.com.
LSAW pipes are applied in onshore pipelines and offshore pipelines, municipal water supply systems, structural pilings, and large infrastructure. Their resistance to high pressure makes them perfect for oil and gas pipeline transport, seawater transportation, and long-distance fluid transportation. LSAW pipes are also utilized in marine engineering, wind turbine foundation, and refineries. Their exterior pressure resistance and stress ability provide reliability in high-load conditions and mission-critical industrial equipment.
