Home > Stainless Steel > Stainless Steel 316Ti Welded Tubing
Mirza Pipes and Tubes, Riyadh, Saudi Arabia, is a reliable producer and supplier of high-quality Stainless Steel 316Ti Welded Tubing, designed to perform optimally even in challenging settings. Renowned for its superior corrosion resistance, durability, and high temperature stability, this tubing enjoys universal application in chemical processing, food processing, and marine industries. Precision-made with complete compliance to international standards, our 316Ti welded tubing guarantees reliability, durability, and extended service life. With uncompromising commitment to quality, competitive pricing, and timely delivery, we at Mirza Pipes and Tubes are a reliable business partner for industrial piping systems.
Stainless Steel 316Ti Welded Tubing contains 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and 0.5–1.0% titanium, which increases stability against sensitization as well as high-temperature scaling. It possesses superior mechanical properties, such as a tensile strength of 515 MPa and a yield strength of 205 MPa, which ensures consistency under stress. The tubing shows superior resistance to pitting, crevice corrosion, and chloride-induced damage. Major benefits are high strength, good weldability, long-term stability, and high corrosion resistance, making it very appropriate for chemical, marine, and food processing applications where performance under aggressive conditions is essential.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269

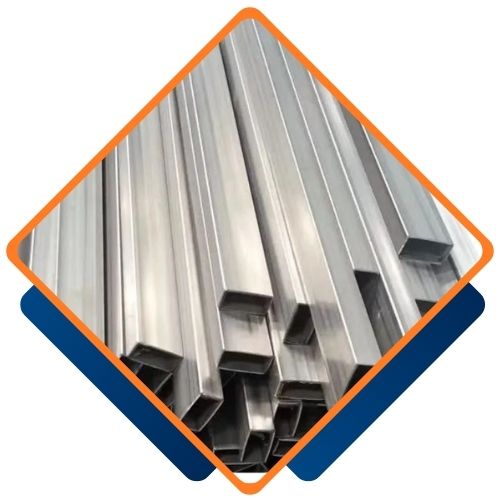

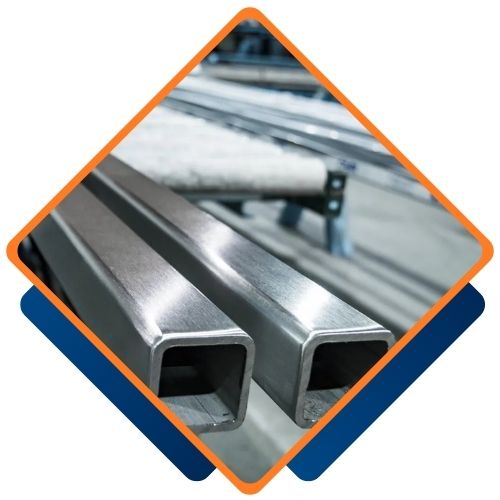

Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 316Ti Welded Tubing from Mirza Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Mirza Pipes and Tubes is the largest supplier of Stainless Steel 316Ti Welded Tubing in Riyadh, Saudi Arabia. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316TI | S31635 | 1.4571 | SUS 316TI | Z6CNDT17‐12 | 320S31 | 08Ch17N13M2T | X6CrNiMoTi17-12-2 |
Yes, Mirza Pipes and Tubes offer large custom designs for Stainless Steel 316Ti Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@mirzapipes.com.
| Specific Heat (0-100°C) | Thermal Conductivity | Thermal Expansion | Modulus Elasticity | Electrical Resistivity | Density |
| 500 | 14.6 | 16.5 | 193 | 7.4 | 7.99 |
| J.kg-1.°K-1 | W.m -1.°K-1 | mm/m/°C | GPa | μohm/cm | g/cm3 |

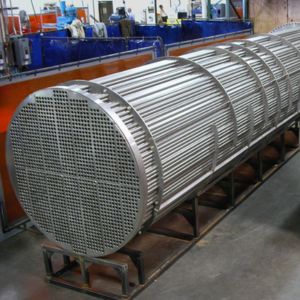

Stainless Steel 316Ti Welded Tubing is widely used in industries where there is a need for corrosion resistance, durability, and heat stability. It has extensive use in chemical process plants, marine conditions, and food processing facilities, where cleanliness and resistance to aggressive conditions are critical. The tubing is also used in heat exchangers, reactors, condensers, and pressure vessels, allowing safe and efficient operation. Due to its improved weldability and strength, it is a perfect material for petrochemical, pharmaceutical, and power generation processes, where long-lasting performance and resistance to aggressive conditions are critical.
